Stalls at Idle
Vehicle starts stalling at idle
Helpful Information
A poor running engine is more apt to stall until the issue is resolved. Learn more
Easy step by step guide on how to repair an automotive engine that stalls at idle, this information is presented in order of popularity and pertains to most vehicles.
Difficulty Scale: 4 of 10
Begin with the vehicle on level ground engine off (cold) with the emergency brake set.
The "check engine" warning lamp is warning the driver there is a problem which could pertain to the engine stalling at idle. Learn more
Check Engine Light MIL
Step 1 - When a vacuum hose breaks or cracks it can fall off causing the engine to lose vacuum and stall at idle. Vacuum hoses are meant to transfer engine vacuum to various accessories such as a brake power booster. Learn more
Broken Vacuum Line
Step 2 - If an air intake boot becomes torn or disconnected it will cause the engine to stall at idle. An air intake boot is used to transfer air from the mass air flow sensor to the throttle actuator. Learn more
Air Intake Boot

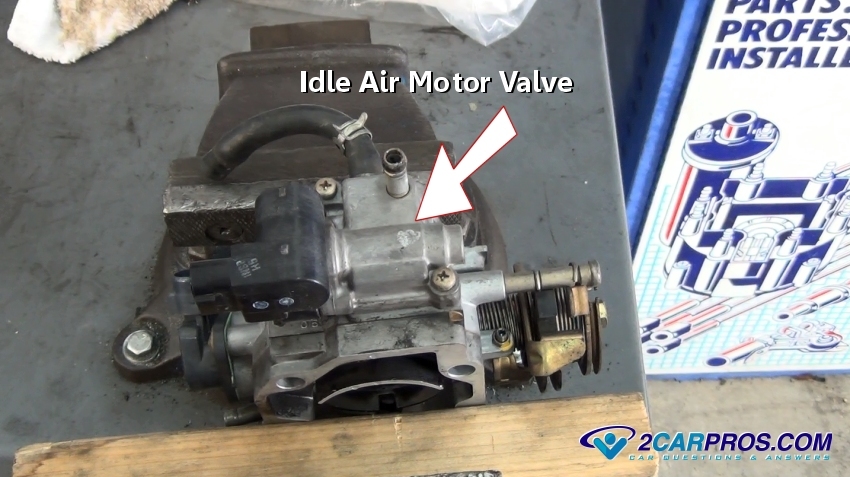

Step 3 - When an idle air control valve fails it will cause the engine to stall at idle. On an older engine, an idle air control motor is responsible for setting the idle speed of the engine. Learn more
Idle Air Control Valve

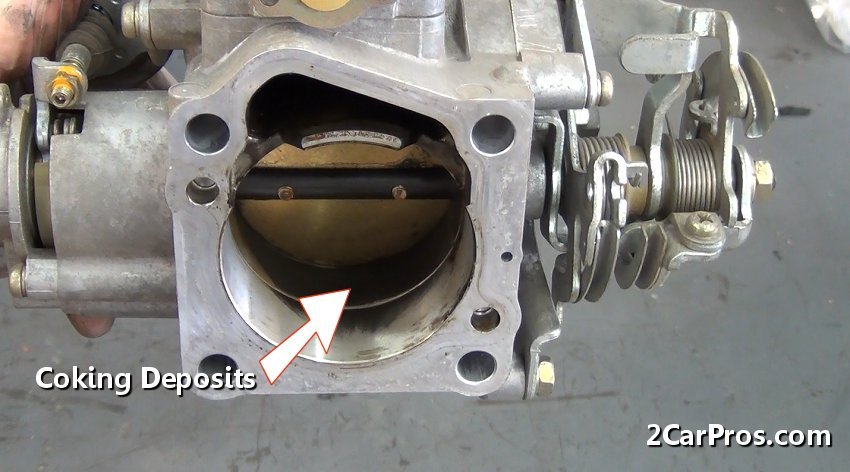

Step 4 - Coking is a tar like substance impedes air flow which disrupts the integrity of the computer system and can cause the engine to stall, and may have hard starting as well, this condition naturally occurs in the intake system of over time. Learn more
Coking Condition
Step 5 - When a EGR (exhaust gas recirculation) valve sticks open, it allows exhaust gases to enter the intake system effectively causing a large vacuum leak which will cause the engine to stall at idle. Older engine's are designed with an EGR valve (exhaust gas recirculation) that allows exhaust gas to enter the intake manifold at cruising speeds. Learn more
EGR Valve

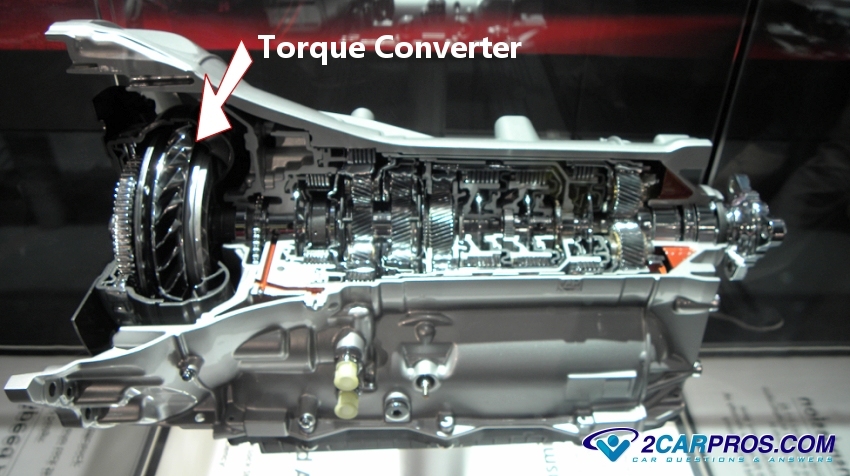

Step 6 - Automatic transmissions are equipped with a torque converter that can fail which will cause the engine to stall by not allowing the engine to become disengaged from the engine at a stop. This condition will usually start to occur after long a drive on a freeway, the car will shutter as it stalls coming to a stop. Learn more
Torque Converter Cutaway
Check Engine Light MIL
Broken Vacuum Line
Air Intake Boot
Idle Air Control Valve
Coking Condition
EGR Valve
Torque Converter Cutaway
