How To Service Mass Air Flow

Mass Air Flow Sensor Service

Helpful Information
The automotive industry uses carburetor cleaner though carburetors are only featured on older cars. This aerosol cleaner is light, and cleans deposits most cleaners cannot. Sometimes shorted to "carb" cleaner this helpful chemical is a must for any repair garage.

Step by step guide on how to service an automotive mass air flow sensor, this article pertains to most MAF equipped cars.

Difficulty Scale: 2 of 10
Begin with the car on level ground, in park with the emergency brake set.

Step 1 - Locate the mass air flow sensor located in the air intake portion of the air filter or intake tube.

Mass Air Flow Sensor

Step 2 - Once the sensor has been located, release the wiring connector to the sensor.

Removing Mass Air Flow Sensor Electrical Connector

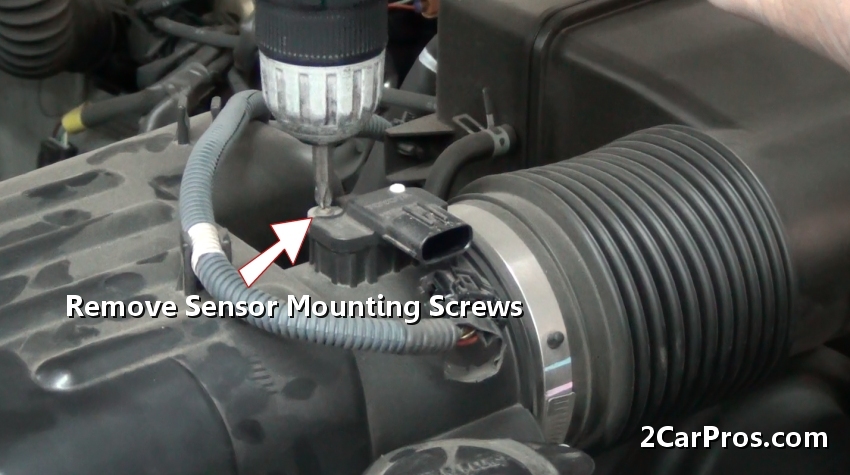

Step 3 - After the electrical connector has been removed, loosen and remove the sensor mounting screws.

Removing Sensor Mounting Screws

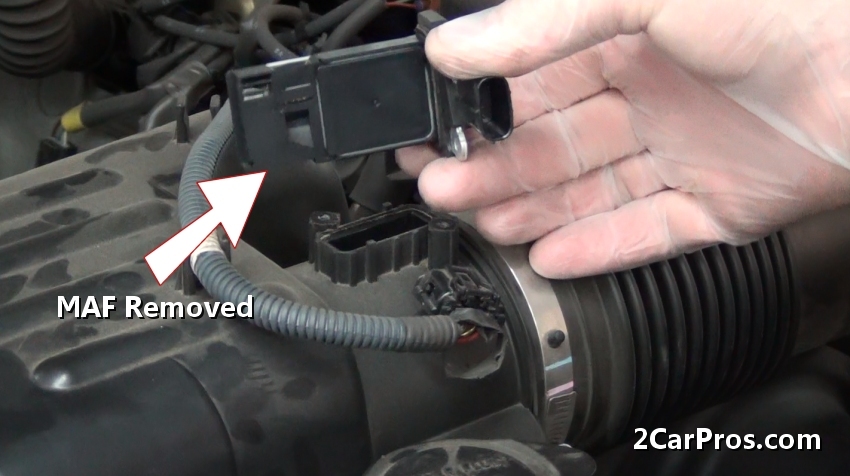

Step 4 - Next, carefully lift the sensor from the housing while taking note of the sensors orientation.

Mass Air Flow Sensor Removed

Step 5 - After the removal of the sensor, use sensor safe carb cleaner to clean the contaminated sensor element.

Sensor Safe Carb Cleaner

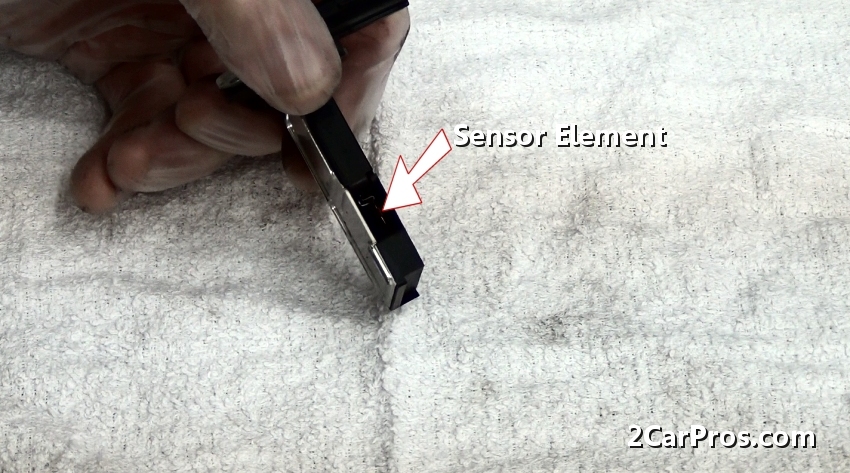

Step 6 - The sensor element becomes contaminated due to the large amount of air which passes by the heated element while the engine is running.

Sensor Element

Step 7 - Use carb cleaner to spray clean the sensor element. The cleaner quickly dries or compressed air can also facilitate the drying process.

Clean Element

Step 8 - Once the sensor has been cleaned and allowed to dry, gently reinstall the sensor into the air tube housing.

Reinstalling Sensor

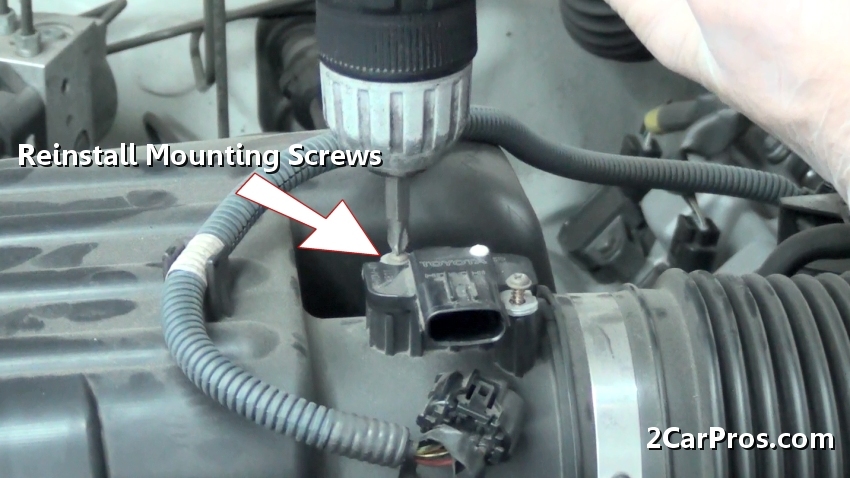

Step 9 - After the sensor has been reinstalled, insert mounting screws and tighten.

Reinstalling Sensor Mounting Screws

Step 10 - While rechecking sensor installation, insert the sensor electrical connector to complete the job.

Reinstalling Electrical Connector

Once the service has been completed, start the engine and allow the computer to recalculate feedback data and make necessary adjustments. A mass air flow sensor service is an important part of an engine tune up and should be performed at regular intervals.
