How To Replace Engine Piston Rings

Piston Ring Replacement

Car Engine Piston Ring Replacing Procedure

Helpful Information

If new piston rings are installed without machine work it will make the situation worse due to the oblong wear pattern the cylinder walls produced during normal long term operations. In other words, new piston rings are perfectly round with no wear, if they are installed into an oval shaped cylinder (worn) the ring operation failure will be amplified.

An engine's piston rings are used to seal the piston to the cylinder wall during the compression stroke. When a combustion event occurs these rings are forced against the engine block cylinder walls to help contain the energy that is released. Most engine pistons contain three separate rings that perform unique tasks. The first ring or top ring is the main combustion ring that takes the brunt of the force as the piston is thrust downward. The second combustion ring acts as an overflow or secondary confinement ring that aids in the service of the first main combustion ring. The third and final ring is used to control motor oil from entering the combustion chamber and being burned as explosive gasses are ignited. This oil control ring consists of three separate pieces and must be assembled on the piston.

Piston rings typically last for the life of the motor, but because these rings are created from extremely hard and brittle metal they can break causing a failure. These failures can range from low compression, cylinder misfire, scoring of the cylinder walls and burning oil.

As an engine ages piston rings wear into the cylinder walls and eventual fail, naturally. When this condition is present it lowers the engine's compression which causes low compression, burning oil and heavy exhaust smells which is the result of an incomplete combustion process. Anytime an engine has reached its normal lifespan the engine needs to be disassembled and re-machined (rebuilt). This process is not difficult with the proper tools and instruction.

Tools and Supplies Needed

• Piston ring installation tool
• Protective eye-wear and gloves
• Motor oil
• Shop towels
• Small standard screw driver or pick
• New piston ring set

Best Practices

• Piston rings are a very important part of the engine and should be installed with care and cleanliness.
• Never install new piston rings into worn cylinder walls.
• Keep ring gap in proper locations on the piston
• Never twist compression rings when installing

Step by step guide on how to install piston rings once the piston has been removed from an automotive engine.

Difficulty Scale: 8 of 10

Step 1 - To replace piston rings the piston must be removed from the engine block and replaced (if worn.) For best results the engine block should be bored and new pistons fitted to the connecting rods which should be re-sized. Piston rods can become "out of shape" due to the extreme force they are subjected to. All piston rings are accompanied by a set of installation instructions, these instructions are used to determine the orientation of the piston ring gap. The location of this gap is an important aspect to the performance of the ring. Begin by cleaning the piston thoroughly and securing it firmly in a vise. (Do not tighten against piston, use connecting rod.)

New Engine Piston

Step 2 - Next, remove the piston rings from the box and separate them into organized piles on a clean surface, use caution as to not mix rings or turn them over. (Compression rings install one direction only.) Locate piston ring installation instructions and read completely. (Each ring manufacturer has specific instructions.)

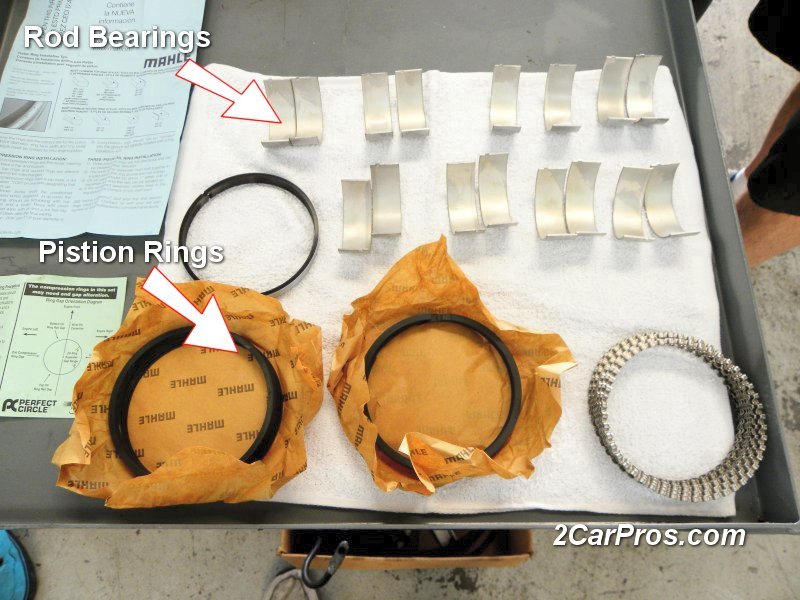

New Piston Rings with Rod Bearings

Step 3 - Always install piston rings at their proper orientation, this helps provide a superior seal to the cylinder walls.

Piston Ring Installation Orientation Guide

Step 4 - The first piston ring to be installed is the oil separator ring. This ring is used to hold in place both oil wiper rings and is designed to allow engine oil on the cylinder walls to be removed and moved back into the oil pan via oil holes built into the piston. This ring doesn't need an installation tool.

Installing Piston Oil Separator Ring

Step 5 - Oil ring separator correctly installed.

Installed Piston Oil Separator Ring

Step 6 - Once properly installed the individual oil wiper rings are ready to be installed. These rings are unidirectional with no top or bottom unlike most compression rings.

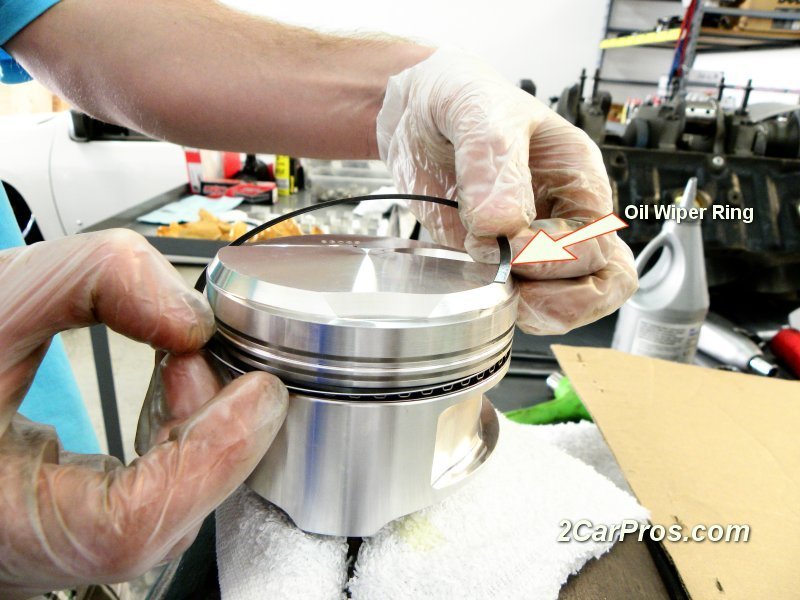

Oil Wiper Ring Installation

Step 7 - Each oil wiper ring is held in place by the oil separation ring that is securely mounted in the piston ring groove. These oil wiper rings reside at either end of the separator and are again, unidirectional. Be sure to reference the installation guide to ensure proper placement of the ring gaps.

Completed Piston Oil Ring Set

Step 8 - Once the assembly of the oil wiper ring combination is complete double check the ring gap location as sometimes they can turn without notice while the installing the additional oil wiper ring. Be sure the oil ring is free from carbon, dirt, grease or any debris of any kind. Now we are ready to install the first compression piston ring.

Installing Second Piston Ring

Step 9 - Carefully choose the correct piston ring (the second and first piston rings are usually different from one another.) This ring could have a top and bottom and usually is shown by a small dot on the top flat part of the ring, near the gap. This ring can sometimes be installed without aid of a ring installer. Gently pry the piston ring open just far enough to fit straight over the piston. Do not bend, or swirl the ring onto the piston because it can bend the ring inhibiting its operation. As with the oil wiper rings be sure to locate the ring gap in the correct location on the piston.

Installation of the Top Compression Piston Ring

Step 10 - The top and final compression ring is installed at the top of the piston, a tool is needed to help spread the ring due to its rigid nature. Like the second ring the main compression ring must be installed with the top of the ring facing upward. If the piston rings are installed incorrectly the piston (engine) will have low compression and may burn oil. Be sure the ring gap is in its proper placement for optimum performance. Once all piston rings have been installed perform a final ring gap location inspection. Always be sure the piston rings are "free floating". Ring must be able to move freely on the piston or it will inhibit proper operation.

Completely Installed Piston Ring Set

Step 11 - Before installation, piston rings must be lubricated (oiled) this helps the piston rings "mate" to the piston and the cylinder walls. Also include wrist pin and piston skirts in the lubrication process. Repeat this process for all pistons to be installed into the engine block, once completed the pistons are ready for installation. Store assembled pistons in a clean dry area if they are not immediately used.

Lubricating Engine Piston Rings

Step 12 - Once the piston rings have been installed onto the piston clean the cylinder bore and apply a thin layer of oil onto the cylinder walls. Using a ring compressor hold the rings against the piston while using a plastic or rubber hammer to gently tap the piston into the bore. This can take some time and practice but hang in there, the first one is the most difficult.

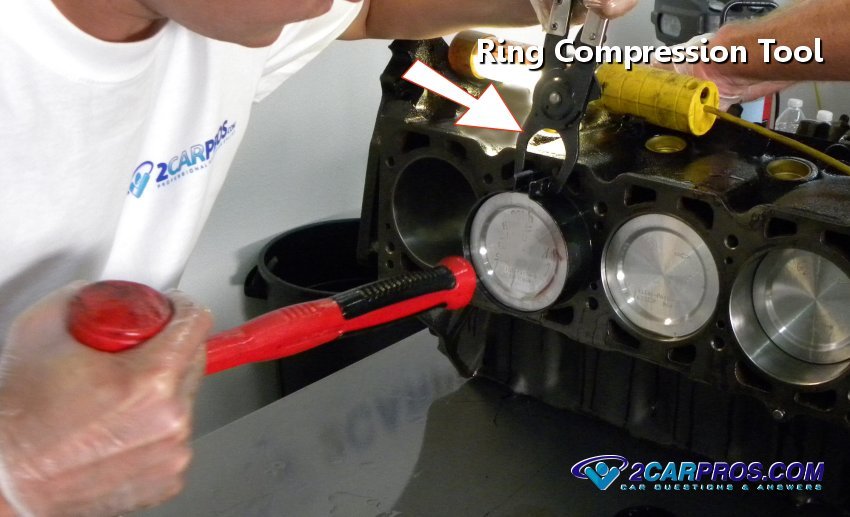

Installing Pistons

Once new piston rings have been installed allow a break in period before subjecting the engine to full load, this will allow the rings to properly mate to the freshly machined bore. These "break in" procedures will help the engine perform to its utmost ability while controlling oil consumption.
